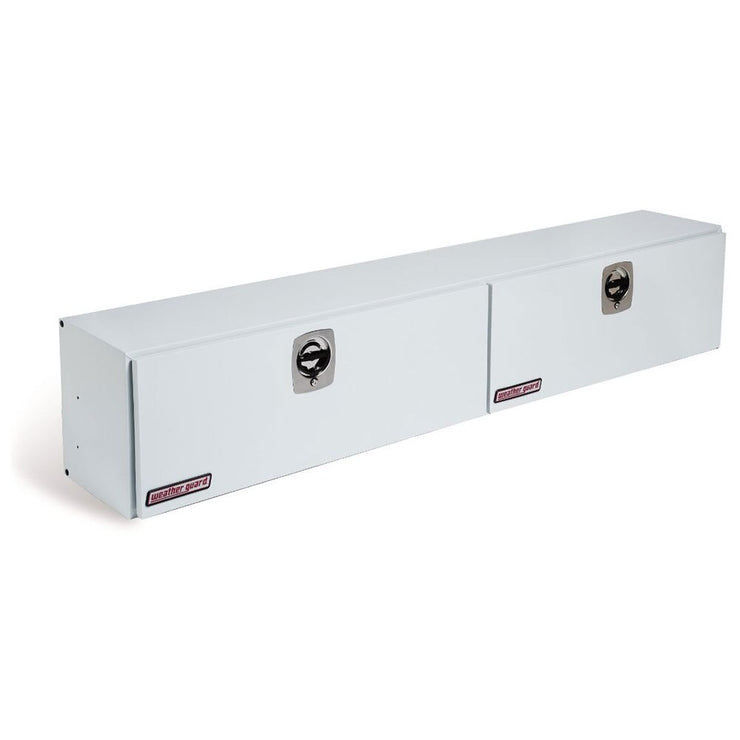

Hi-Side Boxes deliver greater protection from the elements and vandalism. The drill resistant core protects against break-ins and the gutter design channels rain and snow off of the box to keep contents dry. The Model 296-3-02 steel Hi-Side Box features tool-less quick release doors, convenient attachment points, a diamond plate pattern with Brite White ARMOR-TUF® Powder Coat finish that ensures years of dependability and has a storage capacity of 11.8 cu ft.
Weather Guard 296-3-02 Features:
• Steel boxes are constructed from heavy gauge steel; heavy gauge aluminum is used for the doors and reinforcing channels.
• Adjustable doors - Each door adjusts from 90° to 180° for unrestricted access to your tools.
• Secured Against Weather and Theft - Full weather stripping and close-tolerance door flanges keep rain, sleet, snow and vandals away from your tools.
• Aluminum Hinge - Full length staked piano hinge for maximum durability and rigidity.
• Hardware that can take it - Aircraft-type cables connect to the full-length reinforcement channel.
• Stainless-steel D-Handle - Large D-handle allows for easy opening and locking
Weather Guard 296-3-02 Specifications:
Feature | Size / Details |
---|---|
Style | Hi-Side Box |

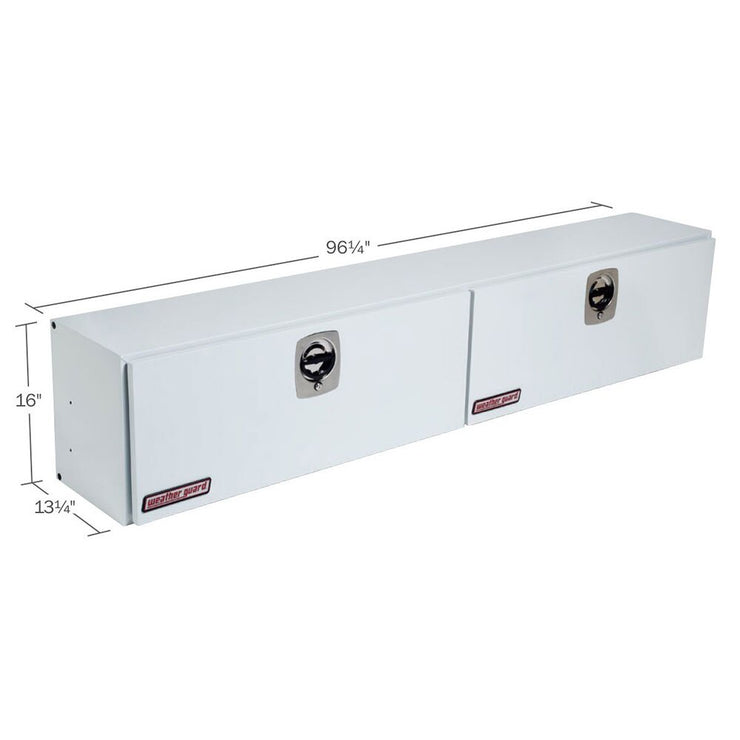

Approx. Product Height | 16in |
Latch | Yes |
Key Alike | On Request |
Latch Mechanism | Latch |
Lid Construction | Heavy Duty C-Channel Reinforced |
Approx. Product Length | 96-1/4in |
Security | Extreme |
Powder Coat Finish | Yes |
Approx. Product Width | 13-1/4in |
Weather Resistance | Ultimate |
Weather Strip | Memory Resistant D-Shaped Ribbed |
Approx. Cu. Ft. Per Unit | 11.8 |
Material | Steel |
Color | White |
Lock System | 3-Point Latch |
Approx. Product Weight Lbs. | 135 |
Warranty | Limited Lifetime |
Approx. Shipping Weight Lbs. | 135 |
Brand | WEATHER GUARD® |
Bed Style - Style Side | Yes |
Dually | Yes |
Side Box Options | Yes |
Vehicle Type, Full | Yes |
Weather Seal | Yes |
Chevrolet Silverado 1500 | Yes |
Chevrolet Silverado 2500/3500 | Yes |
Ford F-150 | Yes |
Ford F-250/F-350 | Yes |
GMC Sierra 1500 | Yes |
GMC Sierra 2500/3500 | Yes |
Nissan Titan | Yes |
RAM 1500 | Yes |
RAM 2500/3500 | Yes |
Bed Length 8 ft | Yes |
