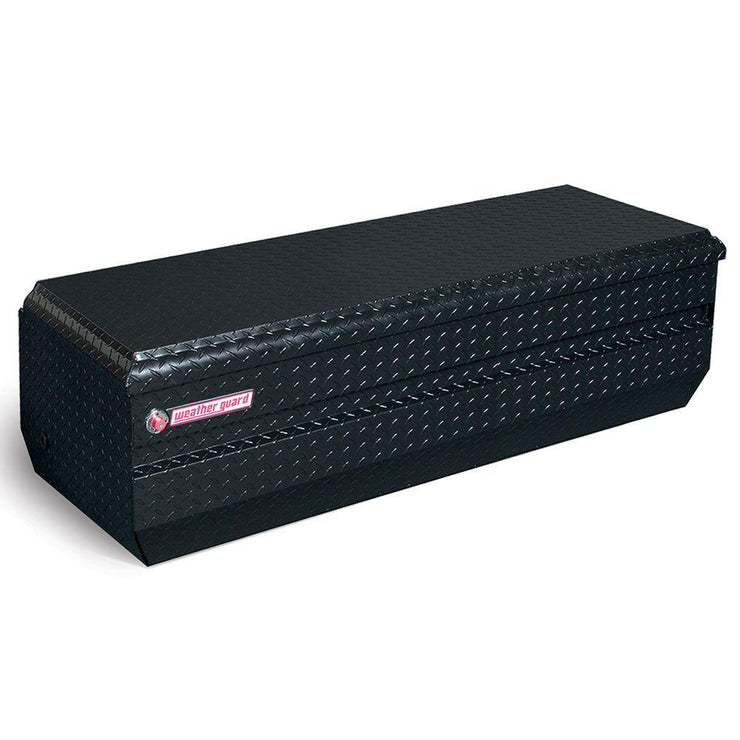

Maximize your visibility. All-purpose chests sit below the bedrail accommodating tonneau covers and lids. The Model 684-5-01 aluminum Full-Size Extra Wide Chest features a diamond plate pattern with Black ARMOR-TUF® Powder Coat finish that ensures years of dependability and has a storage capacity of 18.6 cu ft. The cover opens to 90 degree for maximum access using a unique offset hinge design that still allows installation flush against the truck cab. The rotary style latch mechanism keeps the cover tight against the weather seal and provides smooth one touch opening.
Weather Guard 684-5-01 Features:
• 90° cover opening for easy access
• Full weather seal
• Automotive style latch with smooth "one touch" opening
• Latch linkage protection
• Rotary style latch mechanism keeps the cover tight against the weather seal.
• Mounts directly to the bed of the truck.
• Back of the chest can be placed tight against the front of the pickup bed because zero clearance is needed for opening the cover.
• EXTREME PROTECTION Lock - protects against break-ins and has tamper-resistant retracting lock
Weather Guard 684-5-01 Specifications:
| Feature | Size / Details |
|---|---|
| Style | All Purpose Chest |
| Approx. Product Height | 19-1/4in |
| Latch | Yes |
| Reinforced Loop Striker | Yes |
| Key Alike | On Request |
| Latch Mechanism | Automotive Rotary |
| Lid Construction | Heavy Duty C-Channel Reinforced |
| Approx. Product Length | 62in |
| Security | Extreme |
| Powder Coat Finish | Yes |
| Approx. Product Width | 27-1/2in |
| Weather Resistance | Ultimate |
| Weather Strip | Memory Resistant D-Shaped Ribbed |
| Approx. Cu. Ft. Per Unit | 18.6 |
| Material | Aluminum |
| Color | Gloss Black |
| Lock System | EXTREME PROTECTION® |
| Approx. Product Weight Lbs. | 75.5 |
| Warranty | Limited Lifetime |
| Approx. Shipping Weight Lbs. | 75.5 |
| Brand | WEATHER GUARD® |
| Bed Style - RAM Box | Yes |
| Bed Style - Style Side | Yes |
| Dually | Yes |
| Vehicle Type, Full | Yes |
| Weather Seal | Yes |
| Chevrolet Silverado 1500 | Yes |
| Chevrolet Silverado 2500/3500 | Yes |
| Ford F-150 | Yes |
| Ford F-250/F-350 | Yes |
| GMC Sierra 1500 | Yes |
| GMC Sierra 2500/3500 | Yes |
| RAM 1500 | Yes |
| RAM 2500/3500 | Yes |
| Bed Length 6 ft 6 in | Yes |
| Bed Length 8 ft | Yes |
