weatherguard 975101-3-01 Description

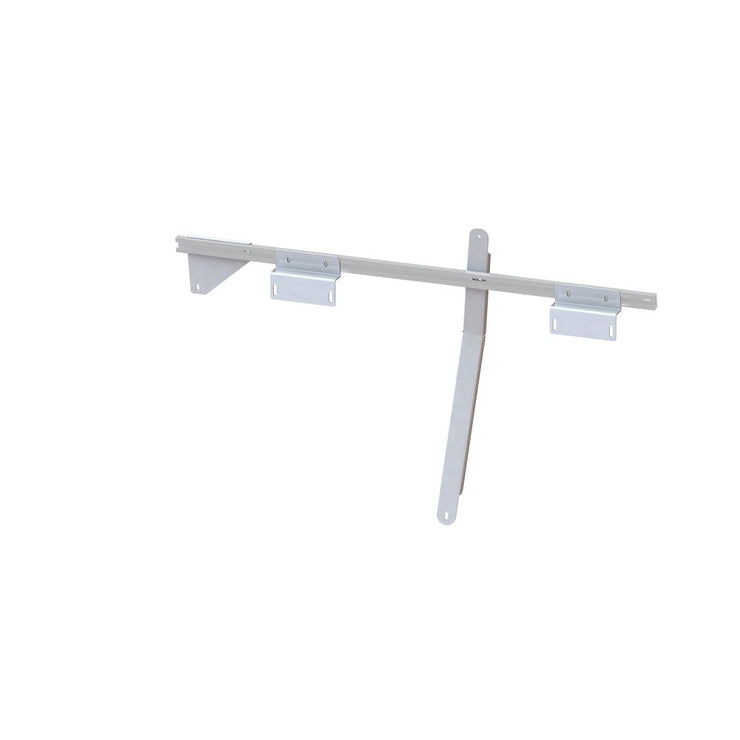

The Model 975101-3-01 Shelf Unit Mounting Kit uses existing reinforced seat belt or existing holes provided by Ford in the low roof Transit 130" wheelbase van for faster, easier and more secure shelving installation. Extruded aluminum upper mounting rail distributes load of shelf units and contents and provides flexible mounting locations during installation. No floor mounted rail to interfere with wide or bulky items under the bottom shelf.
weatherguard 975101-3-01 Includes
- (1) Van Shelf Mounting Kit, Ford Transit Low Roof,130" Wheelbase
weatherguard 975101-3-01 Features
- Mounts two WEATHER GUARD van shelving units on the driver's side and one shelf unit on the passenger side of a low roof Ford Transit 130" wheelbase van
- Extruded aluminum upper mounting rail distributes load of shelf units and contents and provides flexible mounting locations during installation
- Solid installation with exclusive 4-way stop, resists side to side and front to back movement
- 12 gage steel plates provide strong mounting surface for shelf to mounting rail
- No lower rail to interfere with wide or bulky items under the bottom shelf
- Easier and more secure installation
- Brite White ARMOR TUF® Powder Coat finish
weatherguard 975101-3-01 Specifications
Configurator | Yes |
Approx. Cu. Ft. Per Unit | 0.8 |
Approx. Shipping Height | 4" |
Approx. Shipping Length | 58.5" |
Approx. Shipping Width | 5.75" |
Approx. Product Weight | 26.5 lbs |
Approx. Shipping Weight | 29.5 lbs |
Color | White |
Install Time (hours) | 0.3 |
Material | Steel |
Style | Shelf Mounting Kit |
Warranty | Limited Lifetime |
Powder Coat Finish | Yes |
Roof Height Low | Yes |
Vehicle Type, Full | Yes |
Wheel Base Standard | Yes |
Wheel Base Regular | Yes |
